EGON DC-Hub 48V
R 38,695.00 ZAR
The EGON DC-Hub 48V is the centre of EGON's 48V vehicle power system. The alternator, 48V battery, DC/DC converters, solar and control electronics all connect to one circuit board, with built-in load-dump (surge) protection and a fuse indicator on every circuit.
Why 48V
At 48V, an alternator can deliver roughly four times the charge rate of a 12V system. That means a large battery bank can be kept charged from the engine and solar alone, without relying on shore power. EGON has done the complex engineering up front: with EGON's set-up parameters, a workshop experienced in DC electrics can install a dependable, redundant 48V system.
What a complete system needs
- EGON DC-Hub 48V (this product)
- A 48V alternator matched to your vehicle
- EGON 48V DC/DC converters: most set-ups use two, one for the vehicle and one for a 12V or 24V camper or accessory system
- The Wakespeed / Victron 48V control kit
- A 48V LiFePO4 battery with compatible communications
Other brands of DC/DC converter or alternator controller are not compatible with the hub. Every vehicle is different, so talk to us before ordering and we'll help you put together the right combination.
Specifications
| Voltage | 12V / 24V / 48V compatible |
|---|---|

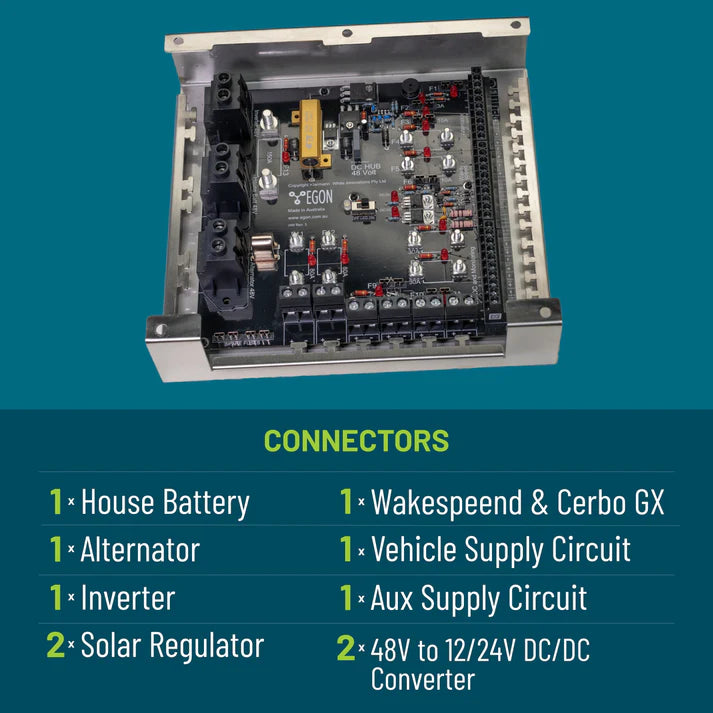

| Inputs | |
| 48V alternator | 1 x 150A max |
| 48V regulated solar | 2 x 30A max |
| 48V auxiliary battery | 150A max |
| 12V/24V DC/DC converter override | 2 x 1A max |
| 12V/24V vehicle accessory circuit | 3A max |
| Wakespeed harness connector | Multiple connections |
| Outputs | |
| 48V inverter | 150A max |

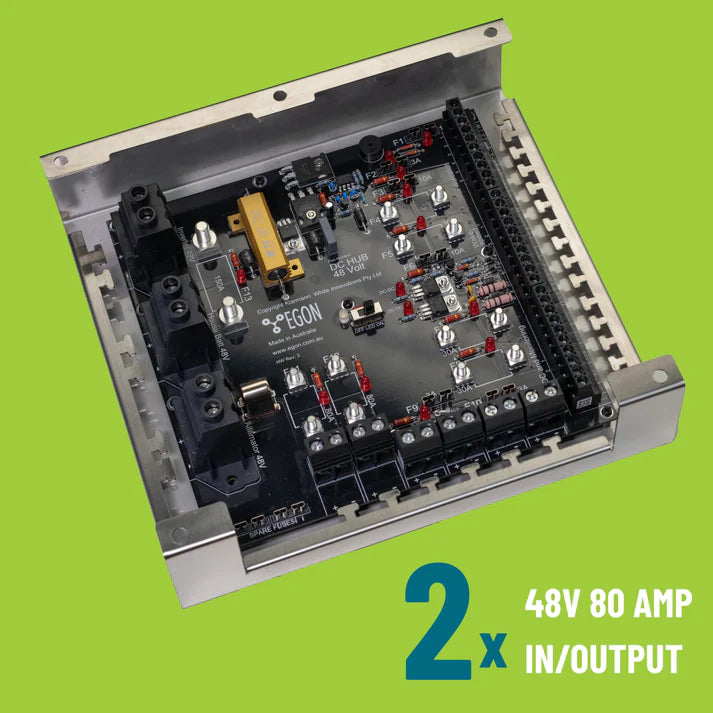

| 48V general purpose | 2 x 80A max |
| 48V DC/DC converter supply | 2 x 30A max |
| 48V alternator field supply | 1 x 10A max |
| 48V Cerbo GX supply | 3A max |
| Auxiliary 12V/24V supply | 100A max |
| Start battery 12V/24V supply | 100A max |
| 12V/24V override switch supply | 2 x 3A max |
| Alternator control circuit | Multiple connections |
| Other | |
| Dimensions | 265 x 250 x 75 mm |

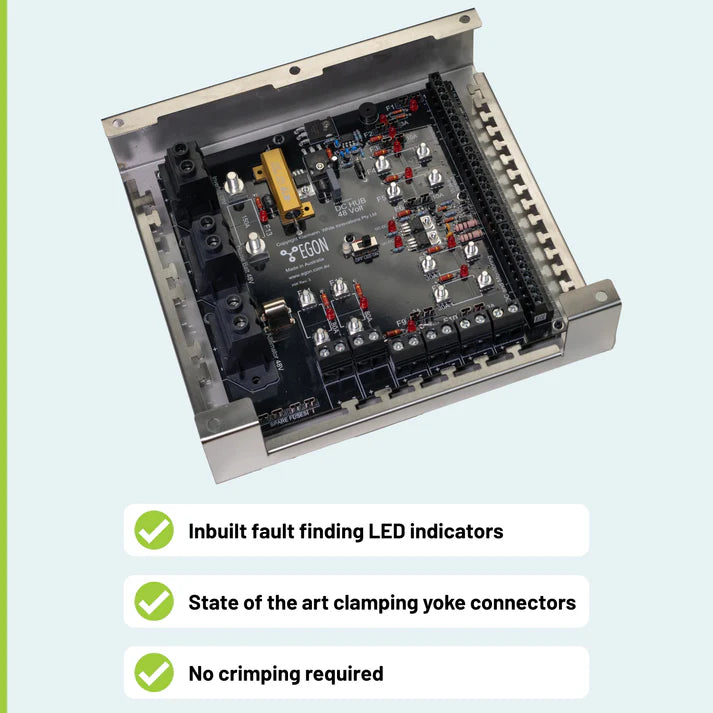

| Fuse indicators | Red LED per blown fuse |
| Warranty | 4 years |
In the box
- DC-Hub 48V circuit board
- Rugged stainless-steel mounting bracket (fits in any orientation)

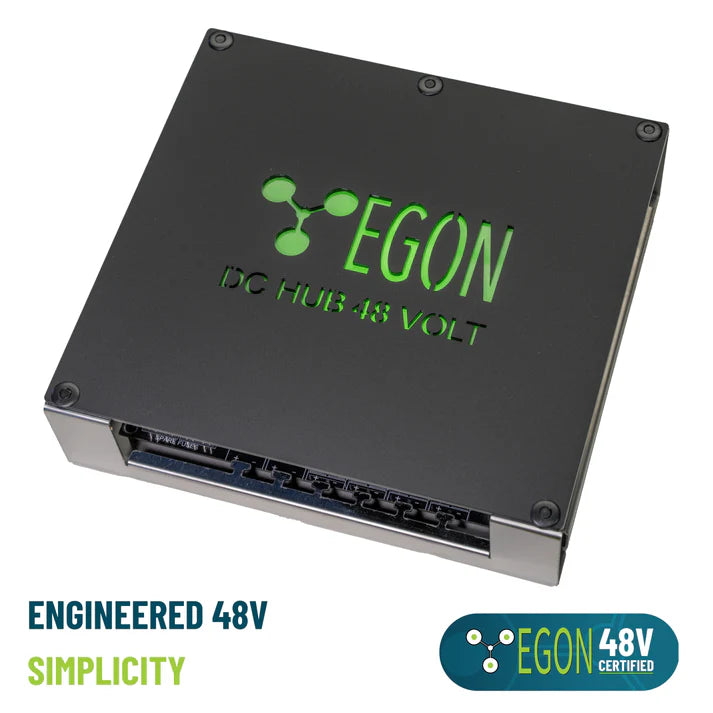

- Cover
- Fasteners
Installation
Installation follows EGON's detailed manual of wiring diagrams and set-up data, step by step. Every step matters to how the system performs, so we recommend fitment by an auto electrician or workshop with a track record in DC installations. If this would be your first DC installation, speak to us first.
