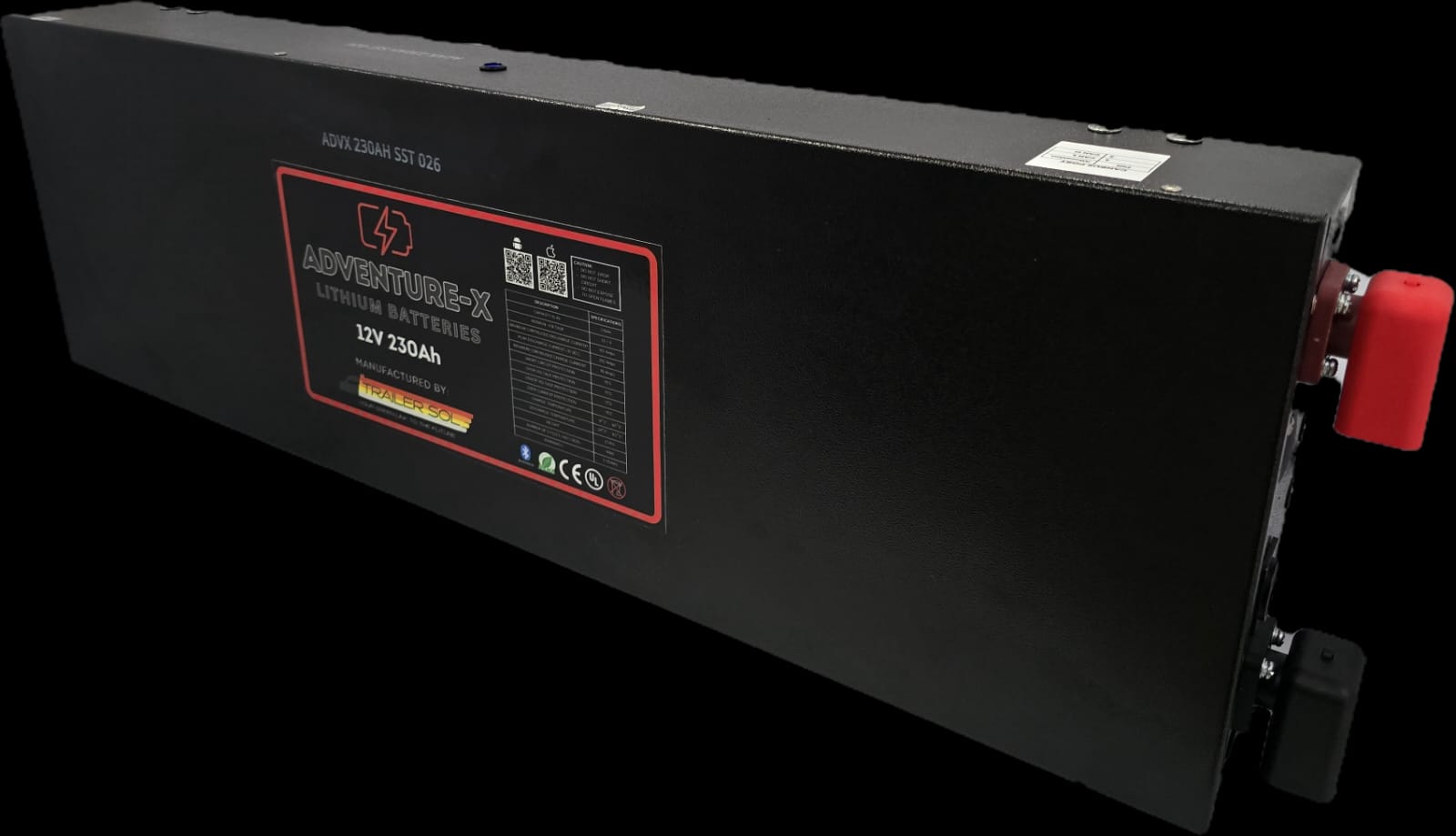

230Ah Super Slimline Victron VE

Lithium Battery

The New Slimline range of Adventure-X batteries allows for a more portable power solution for your off-road adventures.

Only 80mm in width , this battery is suitable for behind the seat installations and where space is limited

Specifications

• Capacity: 230 Ah
• Nominal Voltage: 13.1V
• Maximum Continuous Discharge Current: 230 Amps
• Peak Discharge Current (10 sec): 300 Amps
• Maximum Continuous Charge current: 180 Amps
• Weight: 16 kg
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Under Voltage Protection: Yes
• Over Current Protection: Yes
• Dimensions: 760mm x 240mm x 80mm

Performance

• Charge Temperature: 0°C- 65°C
• Discharge Temperature: -10°C- 65°C
• Number of Cycles (100% DOD): 5000
• Warranty: 5 Years
